Visual Language Model
1 Vision Transformer
The vision encoder is the classic Vision Transformer (ViT) architecture as proposed in (Dosovitskiy et al. 2021).
1.1 Patch Embedding
The first component of the ViT is the Patch Embedding layer, which converts the input image into a sequence of patches. Each patch is treated as a token, similar to how words are treated in NLP models. The patches are flattened and linearly projected into a higher-dimensional space. We can combine those two steps into a single convolutional layer. After patching the image into smaller patches, we can add a learnable class token and positional embeddings to the sequence of patches. The class token is used for classification tasks, while positional embeddings help the model understand the spatial relationships between patches.
class ViTPatchEmbedding(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.img_size = config.vit_img_size
self.patch_size = config.vit_patch_size
assert (
self.img_size % self.patch_size == 0
), "Image size must be divisible by patch size."
self.num_patches = (self.img_size // self.patch_size) ** 2
self.cls_flag = config.vit_cls_flag
self.embd_dim = config.vit_hidden_dim
self.conv = nn.Conv2d(
in_channels=3,
out_channels=self.embd_dim,
kernel_size=self.patch_size,
stride=self.patch_size,
padding="valid",
)
if self.cls_flag:
self.cls_token = nn.Parameter(torch.zeros(1, 1, self.embd_dim)) # (B, 1, D)
self.position_embeddings = nn.Parameter(
torch.zeros(1, self.num_patches + 1, self.embd_dim)
) # (B, P+1, D)
else:
self.position_embeddings = nn.Parameter(
torch.zeros(1, self.num_patches, self.embd_dim)
)
def forward(self, imgs: torch.Tensor):
# (B, C, H, W) -> (B, D, H // P, W // P)
x = self.conv(imgs)
# (B, D, H // P, W // P) -> (B, H // P * W // P, D)
x = x.flatten(2).transpose(1, 2)
if self.cls_flag:
cls_tokens = self.cls_token.expand(x.shape[0], -1, -1)
x = torch.cat((cls_tokens, x), dim=1) # (B, P+1, D)
x = x + self.position_embeddings # (B, P+1, D) or (B, P, D)
return x1.2 Multi Head Self-Attention
After we get the tokens from the Patch Embedding layer, we can feed those tokens into the transformer block. The transformer block consists of a Multi-Head Self-Attention (MHSA) layer and a Feed Forward Network (FFN). The MHSA layer allows the model to attend to different parts of the input sequence simultaneously, capturing complex relationships between patches. The FFN is a simple feed-forward neural network that processes the output of the MHSA layer.
def scale_dot_product_attention(
q: torch.Tensor,
k: torch.Tensor,
v: torch.Tensor,
mask: torch.Tensor | None = None,
dropout: float = 0.0,
):
d_k = q.shape[-1]
# Compute the dot product attention scores
attn_scores = torch.matmul(q, k.transpose(-2, -1)) / (
d_k**0.5
) # Scale by the square root of the dimension
if mask is not None:
attn_scores = attn_scores.masked_fill(mask == 0, float("-inf"))
attn_weights = torch.softmax(attn_scores, dim=-1)
if dropout > 0.0:
attn_weights = torch.nn.functional.dropout(
attn_weights, p=dropout, training=True
)
# Compute the attention output
attn_output = torch.matmul(attn_weights, v) # Shape: (B, S_q, D)
return attn_output, attn_weights
class ViTMultiHeadAttention(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.n_heads = config.vit_n_heads
self.embd_dim = config.vit_hidden_dim
assert (
self.embd_dim % self.n_heads == 0
), "embd_dim must be divisible by num_heads"
self.head_dim = self.embd_dim // self.n_heads
self.dropout = config.vit_dropout
self.qkv_proj = nn.Linear(self.embd_dim, 3 * self.embd_dim)
self.out_proj = nn.Linear(self.embd_dim, self.embd_dim)
# Dropout layer
self.attn_dropout = nn.Dropout(self.dropout)
self.resid_dropout = nn.Dropout(self.dropout)
# Use scaled dot product attention
self.sdpa = hasattr(F, "scaled_dot_product_attention")
if not self.sdpa:
print(
"Warning: Scaled Dot Product Attention not available. Using custom implementation."
)
def forward(self, x: torch.Tensor):
B, T, C = x.size()
q, k, v = map(
lambda t: t.view(B, T, self.n_heads, self.head_dim).transpose(1, 2),
self.qkv_proj(x).chunk(3, dim=-1),
)
if self.sdpa:
y = F.scaled_dot_product_attention(
q, k, v, dropout_p=self.dropout if self.training else 0.0
)
else:
y, _ = scale_dot_product_attention(
q=q, k=k, v=v, dropout=self.dropout if self.training else 0.0
)
y = y.transpose(1, 2).contiguous().view(B, T, C)
y = self.out_proj(y)
return self.resid_dropout(y)1.3 Feed Forward Network
The Feed Forward Network (FFN) is a simple two-layer fully connected network with a GeLU activation function in between. It processes the output of the MHSA layer and applies a residual connection to the input.
class MLP(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.activation_fn = nn.GELU(approximate="tanh")
self.fc1 = nn.Linear(config.vit_hidden_dim, config.vit_inter_dim)
self.fc2 = nn.Linear(config.vit_inter_dim, config.vit_hidden_dim)
self.dropout = nn.Dropout(config.vit_dropout)
def forward(self, x: torch.Tensor):
x = self.fc1(x)
x = self.activation_fn(x)
x = self.fc2(x)
x = self.dropout(x)
return x1.4 Transformer Block
After define the MHSA and FFN layers, we can combine them into a single transformer block. The transformer block applies layer normalization before the MHSA and FFN layers(pre-norm), and it also includes residual connections to help with training stability.
class ViTBlock(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.attn = ViTMultiHeadAttention(config)
self.mlp = MLP(config)
self.ln1 = nn.LayerNorm(config.vit_hidden_dim, eps=config.vit_ln_eps)
self.ln2 = nn.LayerNorm(config.vit_hidden_dim, eps=config.vit_ln_eps)
def forward(self, x: torch.Tensor):
# Layer normalization and multi-head attention
x = x + self.attn(self.ln1(x))
# Layer normalization and MLP
x = x + self.mlp(self.ln2(x))
return x1.5 Vision Transformer
Finally, we can combine the Patch Embedding layer and the transformer blocks to create the Vision Transformer. The Vision Transformer consists of a series of transformer blocks stacked on top of each other, with the output of the last block being used for classification or further processing.
class ViT(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.config = config
self.patch_embedding = ViTPatchEmbedding(config)
self.cls_flag = config.vit_cls_flag
self.dropout = nn.Dropout(config.vit_dropout)
self.blocks = nn.ModuleList(
[ViTBlock(config) for _ in range(config.vit_n_blocks)]
)
self.layer_norm = nn.LayerNorm(config.vit_hidden_dim, eps=config.vit_ln_eps)
self.apply(self._init_weights)
def forward(self, imgs: torch.Tensor):
x = self.patch_embedding(imgs)
x = self.dropout(x)
for block in self.blocks:
x = block(x)
if self.cls_flag:
x = x[:, 0]
else:
x = self.layer_norm(x)
return xSo, that all we need for the Vision Encoder. After we get the output of the
1.6 Modality Projection

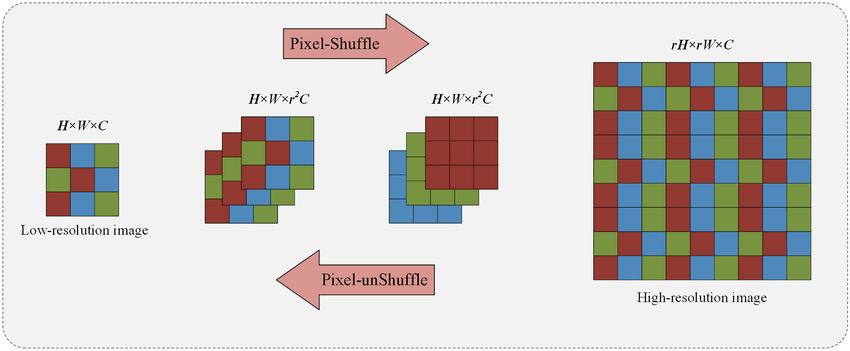

Vision Encoder, we need to project the output into the semantic embedding space to match the text embedding space. This is done using a linear projection layer. One small trick used here is pixel shuffle(Shi et al. 2016), which is used to reduce the number of tokens.
class ModalityProjector(nn.Module):
def __init__(self, config: VLMConfig):
super().__init__()
self.config = config
self.input_dim = config.vit_hidden_dim * (config.mp_pixel_shuffle_factor**2)
self.output_dim = config.lm_hidden_dim
self.scale_factor = config.mp_pixel_shuffle_factor
self.proj = nn.Linear(self.input_dim, self.output_dim, bias=False)
self._init_weight()
def _init_weight(self):
nn.init.normal_(self.proj.weight, mean=0.0, std=0.02)
def pixel_shuffle(self, x: torch.Tensor) -> torch.Tensor:
B, S, D = x.size()
assert S % 2 == 0, "Input sequence length must be even for pixel shuffle."
assert S ** 0.5 % self.scale_factor == 0, "Input sequence length must be a perfect square for pixel shuffle."
H, W = S, S
x = x.view(B, H, W, D) # Convert the flattened sequence into a 2D grid
h_out = H // self.scale_factor
w_out = W // self.scale_factor
x = einops.rearrange(x,
"b (h sf1) (w sf2) d -> b (h w) (d sf1 sf2)",
sf1=self.scale_factor,
sf2=self.scale_factor
)
return x
def forward(self, x: torch.Tensor) -> torch.Tensor:
x = self.pixel_shuffle(x)
assert x.size(-1) == self.input_dim, f"Input dimension mismatch: expected {self.input_dim}, got {x.size(-1)}"
x = self.proj(x)
return xAfter the pixel shuffle, the number of tokens is reduced by a factor of mp_pixel_shuffle_factor**2, which helps to reduce the computational cost while maintaining the semantic information of the visual input. The output of the Modality Projector is then ready to be fed into the Language Model (LM) for further processing.
